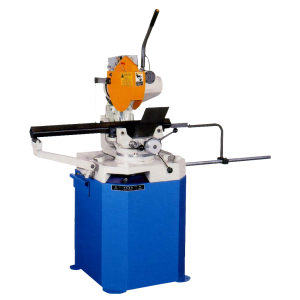

C-275 Circular saw



Model	C-275 / C-275M	C-275-1A	C-275-2A	C-275-3A
Head Rotating Angle	90° / 45°	90° / 45°	90° / 45°	90°
Sawing Capacity Area: mm-Solid Bar	38 / 30	38 / 30	38 / 30	38
Sawing Capacity Area: mm-Round Tube	85 / 75	85 / 75	85 / 75	85
Sawing Capacity Area: mm-Angle Steel	75 x 75 / 50 x 50	75 x 75 / 50 x 50	75 x 75 / 50 x 50	75 x 75
Sawing Capacity Area: mm-Square Tube	75 x 75 / 75 x 75	75 x 75 / 75 x 75	75 x 75 / 75 x 75	75 x 75
Sawing Capacity Area: mm-Trough Shaped Steel	75 x 75 / 50 x 50	75 x 75 / 50 x 50	75 x 75 / 50 x 50	75 x 75
Sawing Capacity Area: mm-Rectangular Steel	75 x 90 / 75 x 60	75 x 90 / 75 x 60	75 x 90 / 75 x 60	75 x 90
Cutting Motor	A: 2HP/1.4HP-2/4P B: 1.4HP/1HP-4/8P	A: 2HP/1.4HP-2/4P B: 1.4HP/1HP-4/8P	A: 2HP/1.4HP-2/4P B: 1.4HP/1HP-4/8P	A: 2HP/1.4HP-2/4P B: 1.4HP/1HP-4/8P
Cutting Speed	A:120/60rpm B: 60/30rpm	A:120/60rpm B: 60/30rpm	A:120/60rpm B: 60/30rpm	A:120/60rpm B: 60/30rpm
Cooling Pump Power	1/8HP	1/8HP	1/8HP	1/8HP
Required Air Pressure	4-6kgs/cm²	4-6kgs/cm²	4-6kgs/cm²	4-6kgs/cm²
Used Circular Saw Blade	250/300mm	250/300mm	250/300mm	250/300mm
Feeding Length	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (Just for A3 models)	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (Just for A3 models)	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (Just for A3 models)	3-700mm (standard) but can be prolonged 2,100mm and also can be feed 3 times (Just for A3 models)
Dimensions(mm)	L710 x W610 x H1350	L850 x W610 x H1350	L850 x W610 x H1350	L1000 x W2150 x H1700
Weight	180 kgs	190 kgs	240 kgs	660 kgs
Standard Accessories	A High-speed steel saw blade (φ250mm), a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.	A High-speed steel saw blade (φ250mm), a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.	A High-speed steel saw blade (φ250mm), a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.	A High-speed steel saw blade (φ250mm), a ruler (not applicable for 3A), a bottle of cutting oil, a set of tools, and a set of clamping apparatus.
