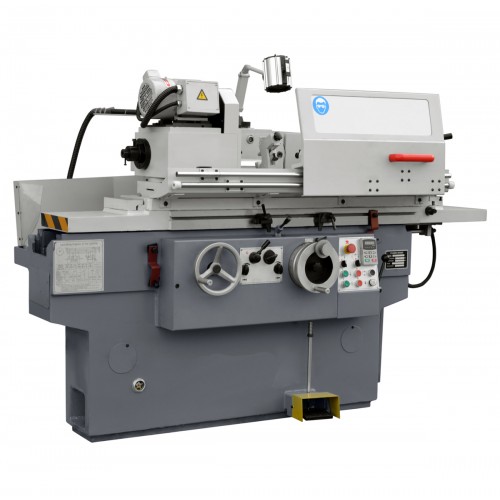

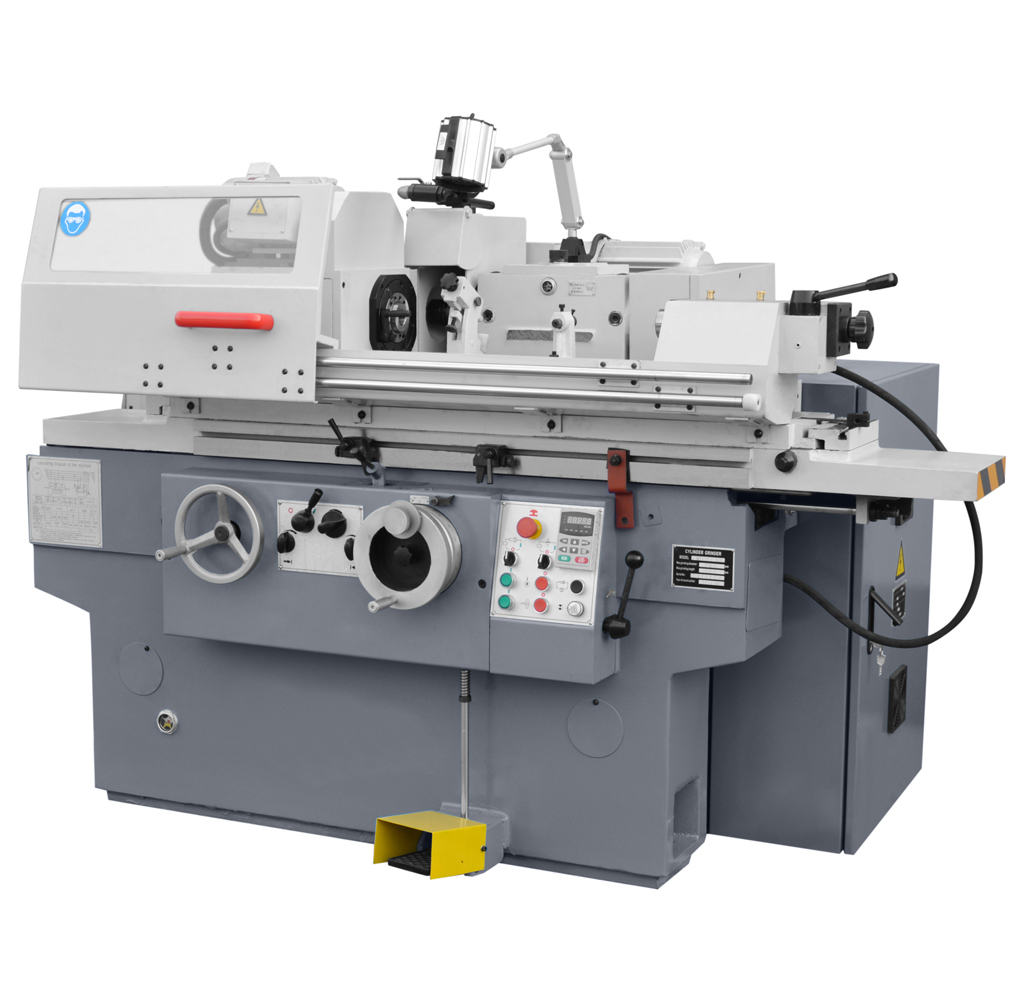

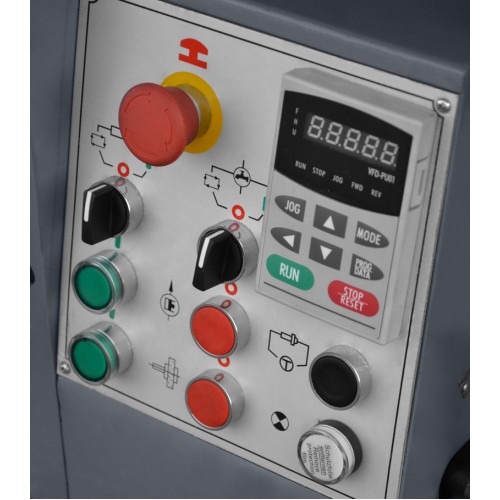

Universal Cylindrical Grinder
Working Accuracy:
O.D./I.D. Roundness: 1.5/2.5μm
Uniformity of dia. In longitudinal section(O.D./I.D.): 5/8μm
Surface roughness(O.D./I.D.):Ra0.32/0.63μm
Standard Accessories:
Coolant tank
Grinding wheel dresser
Wheel balancing mandrel
Driving dog
Carbide-tipped center
Supportiron
Open type steady rest
Wheel flange
3-jaw chuck
Chuck base
Quill shaft for internal grinding
Optional Accessories:
Wheel balancing stand
Radius dresser
Closed type steady rest
|
Technical parameters |
Unit |
PCG-500/200 |
PCG-800/200 |
|
O.D grinding range |
mm |
Φ8~200 |
Φ8~200 |
|
ID grinding range |
mm |
Φ13~100 |
|
|
Center height |
mm |
135 |
135 |
|
Work head spindle speed |
r/min |
50Hz:25~380 stepless |
50Hz:25~380 stepless |
|
Max travel of workbench |
mm |
650 |
650 |
|
Hydraulic travel speed |
m/min |
0.1~4 |
0.1~4 |
|
Max workpiece weight |
kg |
50 |
50 |
|
Griding lenth of OD/ID |
mm |
500 |
500/125 |
|
The workbench rotation range |
° |
-5~+9° |
-5~+9° |
|
Wheel peripheral velocity |
m/s |
38 |
38 |
|
External grinding wheel size |
mm |
MaxΦ400x50xΦ203 MinΦ280x50xΦ203 |
|
|
Inner spindle speed |
r/min |
16000 |
|
|
Tail stock taper morse |
morse |
NO.4 |
NO.4 |
|
Motor total capacity |
kw |
5.625 |
5.625 |
|
Machine size(L×W×H) |
mm |
2500x1600x1500 |
2500x1600x1500 |
|
Machine weight |
kg |
2500 |
2500 |
