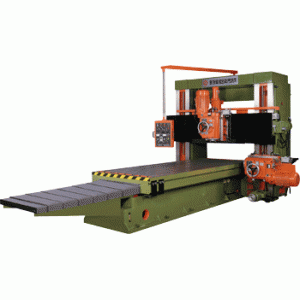

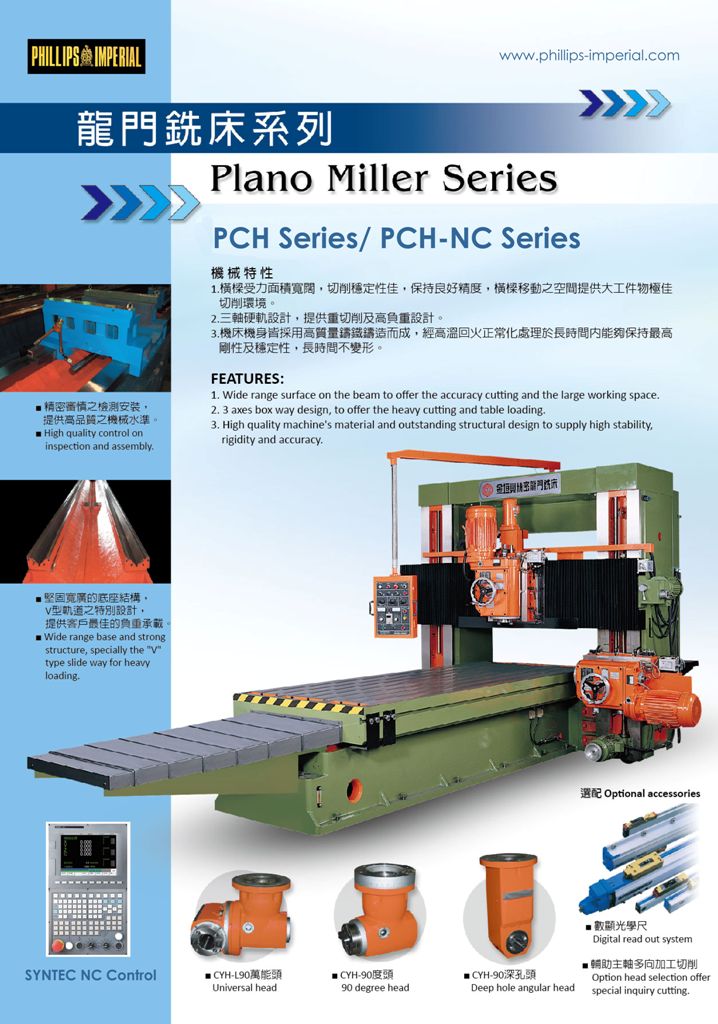

Double column milling machine PCH/ PCH-NC
Specifications
|
Model |
Unit |
PCH-2012/ NC |
PCH-2512/ NC |
PCH-3012/ NC |
PCH-4012/ NC |
|
|
X Axis travel |
mm |
2000 |
2500 |
3000 |
4000 |
|
|
Y Axis travel |
mm |
1200 |
||||
|
Z Axis travel(head) |
mm |
(std) (10HP)300/(15HP)400 or 600(opt) |
||||
|
Distance between the column |
mm |
1230 |
||||
|
Spindle nose to table surface |
mm |
900 |
||||
|
Table size |
mm |
2000x800 |
2500x800 |
3000x800 |
4000x800 |
|
|
Vertical head motor |
HP |
10(std)/15(opt) |
||||
|
Side head motor |
HP |
10 |
||||
|
Driving system |
mm |
Rapid 5 / Cutting 3 (teeth rate1:15) |
||||
|
Vertical head left / right motor |
HP |
2 |
||||
|
Beam up / Down motor |
HP |
2 |
||||
|
Cutting feed rate |
mm |
Variable speed |
||||
|
Machine weight |
kgs |
11500 |
13500 |
15800 |
18000 |
|
|
Machine size |
L |
mm |
6180 |
7300 |
8200 |
10500 |
|
W |
mm |
3000 |
||||
|
H |
mm |
2700 |
||||
|
Model |
Unit |
PCH-2015 / NC |
PCH-2515/ NC |
PCH-3015/ NC |
|
|
X Axis travel |
mm |
2000 |
2500 |
3000 |
|
|
Y Axis travel |
mm |
1500 |
|||
|
Z Axis travel(head) |
mm |
(std)(10HP)300/(15HP)400 or 600(opt) |
|||
|
Distance between the column |
mm |
1530 |
|||
|
Spindle nose to table surface |
mm |
1000(std)/1200(opt) |
|||
|
Table size |
mm |
2000x1200 |
2500x1200 |
3000x1200 |
|
|
Vertical head motor |
HP |
10(std)/15(opt) |
|||
|
Side head motor |
HP |
10 |
|||
|
Driving system |
mm |
Rapid 5 / Cutting 3 (teeth rate1:15) |
|||
|
Vertical head left / right motor |
HP |
2 |
|||
|
Beam up / Down motor |
HP |
2 |
|||
|
Cutting feed rate |
mm |
Variable speed |
|||
|
Machine weight |
kgs |
14000 |
16000 |
18500 |
|
|
Machine size |
L |
mm |
6180 |
7300 |
8200 |
|
W |
mm |
3300 |
|||
|
H |
mm |
2900 |
|||
|
Model |
Unit |
PCH-4015/ NC |
PCH-5015/ NC |
PCH-6015/ NC |
|
|
X Axis travel |
mm |
4000 |
5000 |
6000 |
|
|
Y Axis travel |
mm |
1500 |
|||
|
Z Axis travel(head) |
mm |
(std)(10HP)300/(15HP)400 or 600(opt) |
|||
|
Distance between the column |
mm |
1530 |
|||
|
Spindle nose to table surface |
mm |
1000(std)/1200(opt) |
|||
|
Table size |
mm |
4000x1200 |
5000x1200 |
6000x1200 |
|
|
Vertical head motor |
HP |
10(std)/15(opt) |
|||
|
Side head motor |
HP |
10 |
|||
|
Driving system |
mm |
Rapid 5 / Cutting 3 (teeth rate1:15) |
|||
|
Vertical head left / right motor |
HP |
2 |
|||
|
Beam up / Down motor |
HP |
2 |
|||
|
Cutting feed rate |
mm |
Variable speed |
|||
|
Machine weight |
kgs |
20500 |
23000 |
26500 |
|
|
Machine size |
L |
mm |
10500 |
12650 |
14580 |
|
W |
mm |
3300 |
|||
|
H |
mm |
2900 |
|||
|
Model |
Unit |
PCH-2515 |
PCH-3018 |
PCH-4018 |
PCH-5018 |
PCH-6018 |
|
|
X Axis travel |
mm |
2500 |
3000 |
4000 |
5000 |
6000 |
|
|
Y Axis travel |
mm |
1800 |
|||||
|
Z Axis travel(head) |
mm |
(std)(10HP)300/(15HP)400 or 600(opt) |
|||||
|
Distance between the column |
mm |
1830 |
|||||
|
Spindle nose to table surface |
mm |
1000(std)/1200(opt) |
|||||
|
Table size |
mm |
2500x1400 |
3000x1400 |
4000x1400 |
5000x1400 |
6000x1400 |
|
|
Vertical head motor |
HP |
10(std)/15(opt) |
|||||
|
Side head motor |
HP |
10 |
|||||
|
Driving system |
mm |
Rapid 5 / Cutting 3 (teeth rate1:15) |
|||||
|
Vertical head left / right motor |
HP |
2 |
|||||
|
Beam up / Down motor |
HP |
2 |
|||||
|
Cutting feed rate |
mm |
Variable speed |
|||||
|
Machine weight |
kgs |
18300 |
20000 |
22500 |
25000 |
29000 |
|
|
Machine size |
L |
mm |
7300 |
8200 |
10500 |
12650 |
14580 |
|
W |
mm |
3680 |
|||||
|
H |
mm |
2900 |
|||||
PCH-NC Series: use SYNTEC NC Control, FANUC, MITSUBISHI Control as your request.
