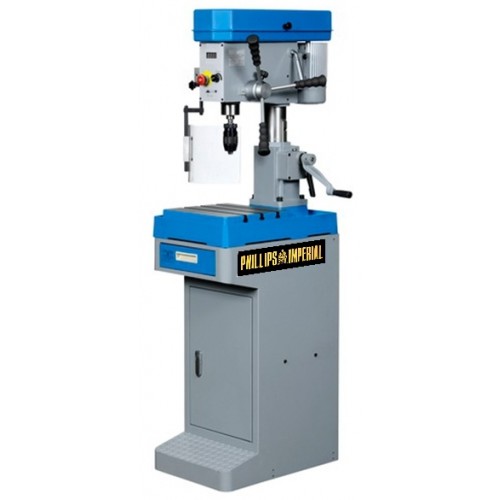

JS-20VC Manual Feed Variable Speed Drilling Machine

Drilling capacity		Ø 3MM ~ Ø20MM
Spindle taper		MT2
Spindle speed, rpm		150  - 2500
Number of speeds		Variable Speeds
Spindle travel		90MM
Swing		360MM
Column diameter		Ø 80MM
Table size, mm		T 300 × 320MM
T-Slot Size		12MM
Base size, mm		550× 380MM
Spindle motor		DC 1200W (1-1/2HP)
Voltage		230V 1Ph
Spindle Nose To Table		230~720MM
Stand dimension, mm		560 × 390 × 800mm
Packing dimension, mm (thick carton)		750 × 560 × 1670MM / 24.8 Cuft
Net weight, Kgs		N.W -132Kg / G.W -149Kg
20' FCL		28 Sets
Packing cartons per machine		1
Pigment		RAL 5015 + RAL 7001
