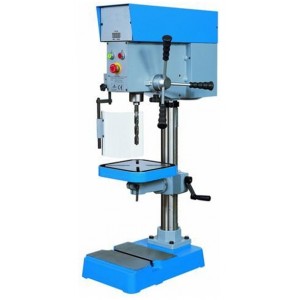

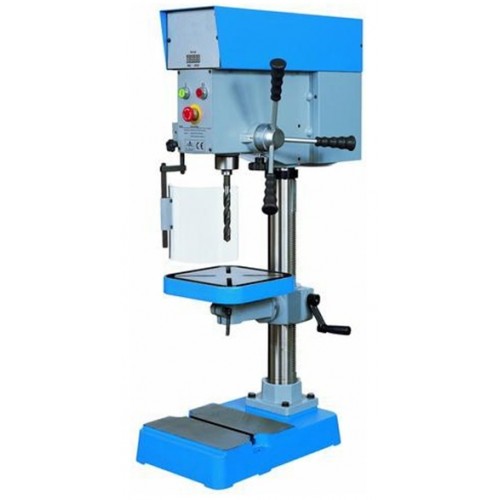

JS-825V Manual Feed Variable Speed Drilling Machine

Drilling capacity		Ø 3MM ~ Ø25MM
Spindle taper		MT3
Spindle speed, rpm		50 - 60 Hz, 390 - 3000, 450 - 3000
Number of speeds		Variable Speeds
Spindle travel		100MM
Swing		360MM
Column diameter		Ø 80MM
Table size, mm		T 280 × 280 MM
T-Slot Size		12MM
Base size, mm		T550× 330 x 90MM
Spindle motor		0.55 kW (3/4HP)
Voltage		230V/400V  3Ph
Spindle Nose To Table		415 - 645 MM
Packing dimension, mm (thick carton)		820 × 380 × 1360MM / 15 Cuft
Net weight, Kgs		N.W -115Kg / G.W -128Kg
20' FCL		42 Sets
Packing cartons per machine		1
Pigment		RAL 5015 + RAL 7001
