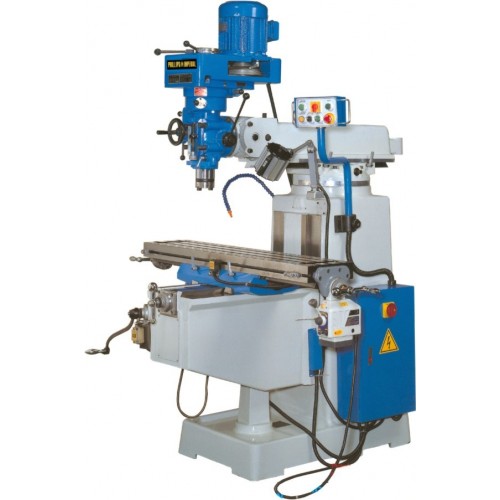

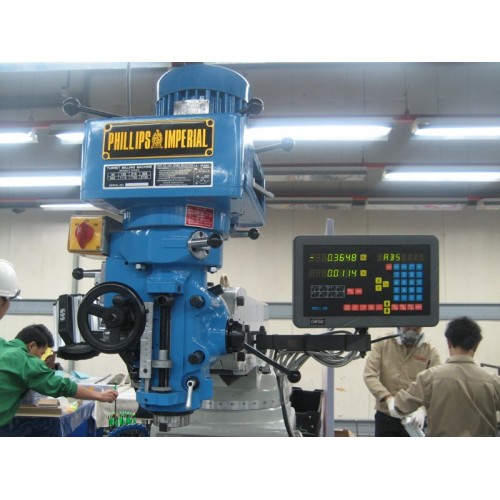

Vertical Turret Milling

MODEL

1-1/4VA

3 SVA

3 SVS

4 SVA

4 SVS

Table size(mm)

228x889

250x1370

250x1370

250x1370

250x1370

Travel (mm)

X axis

610

900

900

900

900

Y axis

300

400

400

400

400

Z axis

380

420

420

420

420

Spindle travel

127

127

127

127

127

Spindle

Taper

NT30

ISO30

ISO30

ISO40

ISO40

Motor (HP)

3

3

3

5

5

Quill feed rate (mm/rev)

0.04; 0.08; 0.15

0.04; 0.06; 0.15

0.04; 0.06; 0.15

0.04; 0.06; 0.15

0.04; 0.06; 0.15

Spindle speed (rpm)

8 steps (70~2310)

16 steps (80~3600)

Variable (70~4200)

10 steps (80~3600)

Variable (70~4200)

Head swivel angle

Left 45⁰, right 45⁰

Distance from spindle to column (mm)

140~450

160~670

160~670

210~740

210~740

Distance from spindle to table (mm)

50~430

50~450

50~450

60~450

60~450

Dimension (LxWxH)

2200x1520x1700

2200x1520x1700

2200x1520x1700

2200x1520x1700

Weight (kg)

650

1100

1100

1100

1100

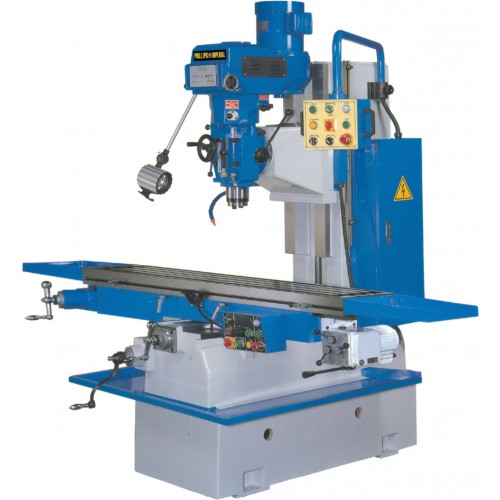

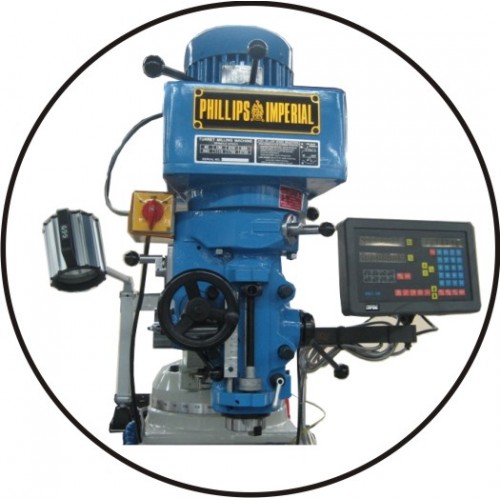

MODEL

1-1/2VS

5BVA

5BVS

6BVA

6BVS

Table size(mm)

228x1067

250x1370

250x1370

305x1370

305x1370

Travel (mm)

X axis

700

850

914

1000

850

Y axis

330

500

500

500

500

Z axis

410

700

700

700

700

Spindle travel

127

127

127

127

127

Spindle

Taper

ISO30

ISO40

ISO40

ISO40

ISO40

Motor (HP)

3

5

5

5

5

Quill feed rate (mm/rev)

0.04; 0.08; 0.15

0.04; 0.06; 0.15

0.04; 0.06; 0.15

0.04; 0.06; 0.15

0.04; 0.06; 0.15

Spindle speed (rpm)

Variable (60~3600)

10 steps (80~3600)

Variable (70~4200)

10 steps (80~3600)

Variable (70~4200)

Head swivel angle

Left 45⁰, right 45⁰

Distance from spindle to column (mm)

160~490

390

390

390

390

Distance from spindle to table (mm)

50~460

40~740

40~740

40~740

40~740

Dimension (LxWxH)

2200x1370x1640

2642x1470x1830

2642x1470x1830

2642x1470x1830

2642x1470x1830

Weight (kg)

1000

1200

1200

1300

1300
