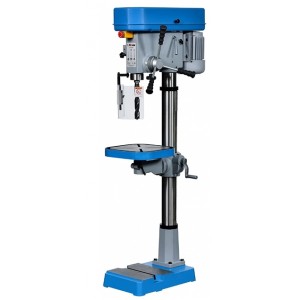

JTD-25SFD Manual Feed Drilling Machine

Drilling capacity		Ø 4MM ~ Ø25MM
Spindle taper		MT3
Spindle speed, rpm		50 - 60 Hz, 200 - 1680, 240 - 2000
Number of speeds		9 steps
Spindle travel		125MM
Swing		450MM
Column diameter		Ø 92MM
Table size, mm		T 350 × 350 MM
T-Slot Size		12MM
Base size, mm		T580 × 330MM
Spindle motor		0.75kW (1HP)
Voltage		230V/400V / 1Ph  3Ph
Spindle Nose To Table		720 MM
Spindle Nose to base		1140 MM
Packing dimension, mm (thick carton)		Head 800 × 530 × 320MM / 4.8 Cuft Base. Table 650 x 420 x 400MM / 3.9 Cuft Column 1360 x 200 x 190MM/ 1.8 Cuft
Net weight, Kgs		N.W - 142.5Kg / G.W - 149.5 Kg
Parking cartons per machine		3
20' FCL		104 Sets
Packing dimension, mm (wooden crate)		820 x 490 x 1860MM / 26.4 Cuft
Net weight, Kgs		N.W-142.5Kgs / G.W-193Kg
20' FCL		33 Sets
Packing cartons per machine		1
Pigment		RAL 5015 + RAL 7001
